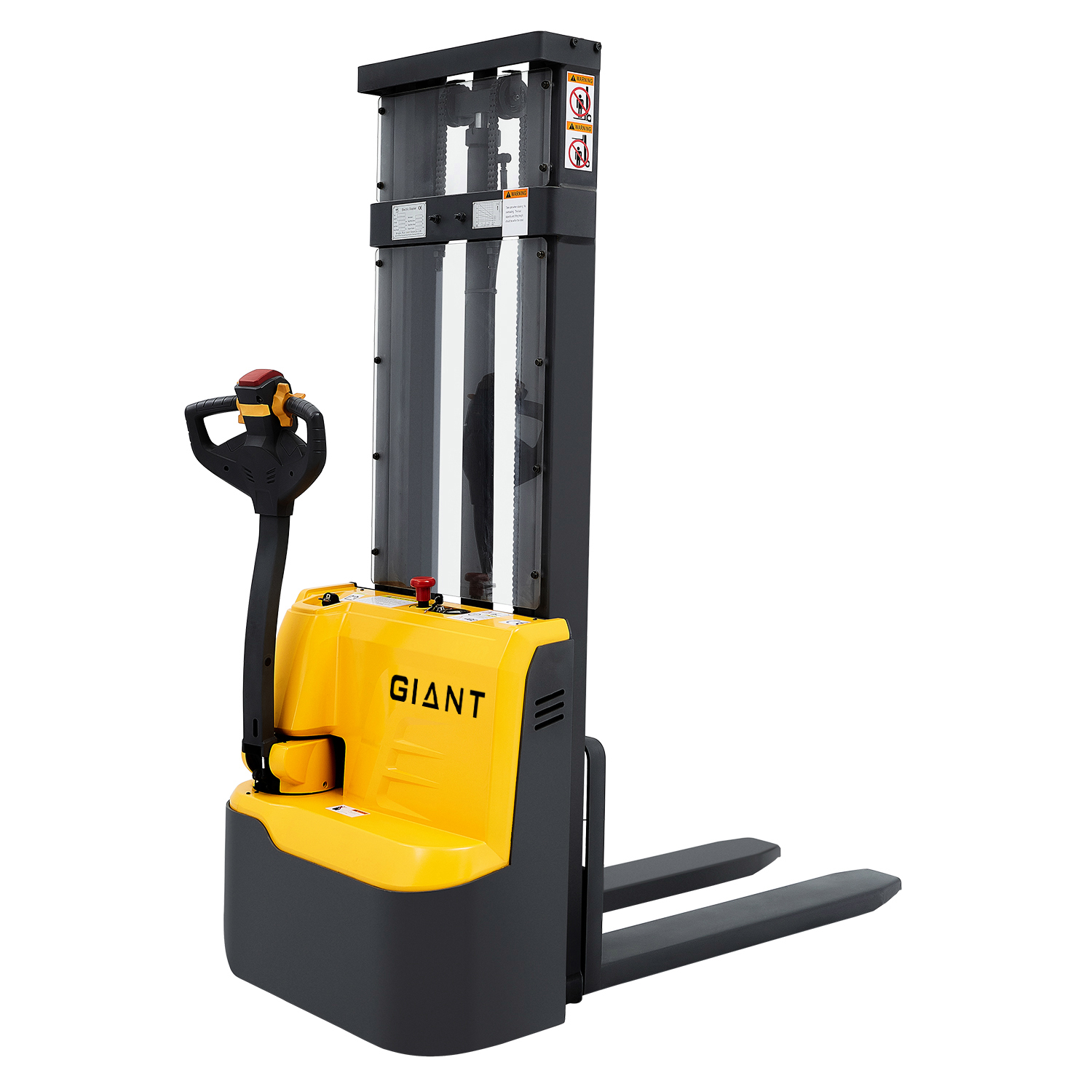

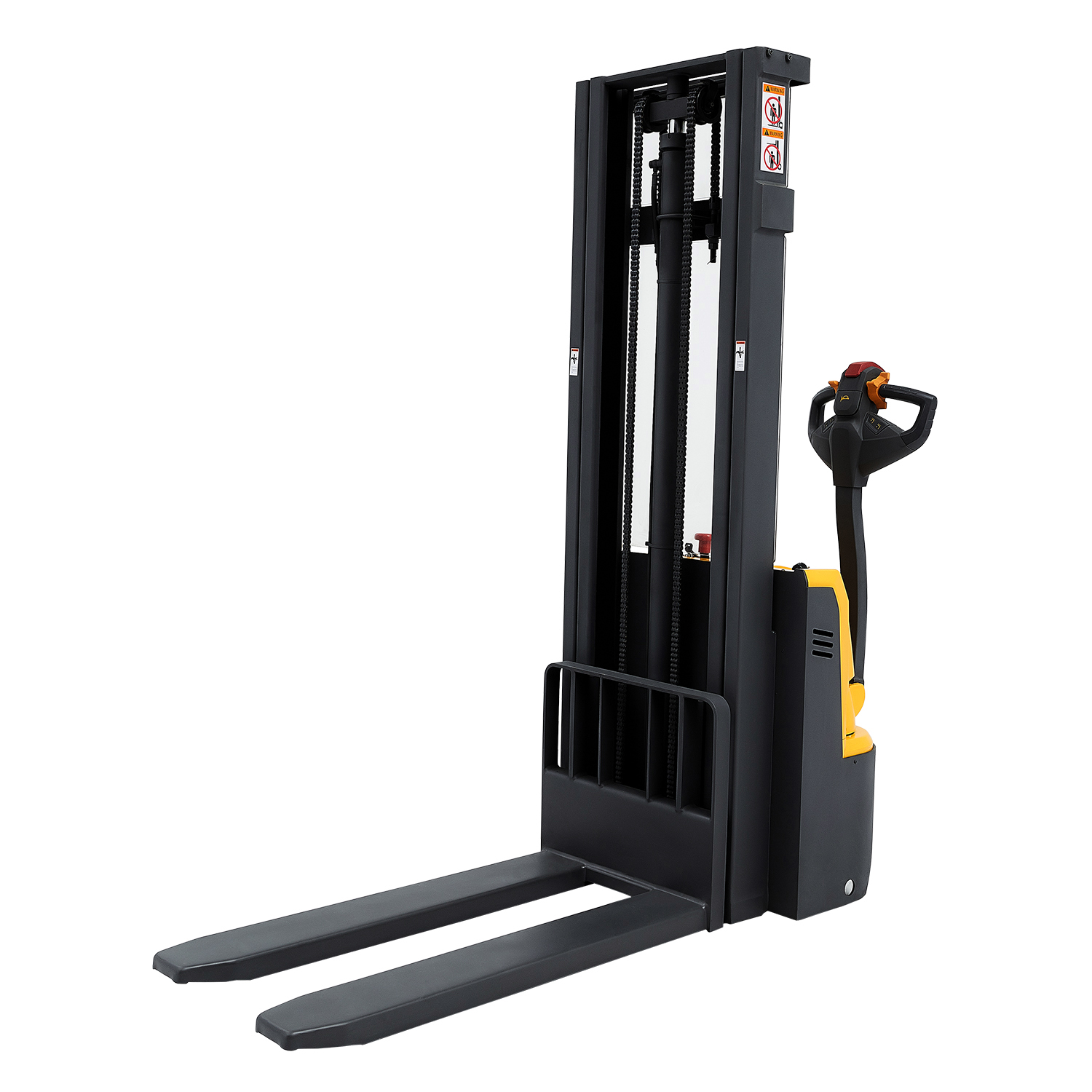

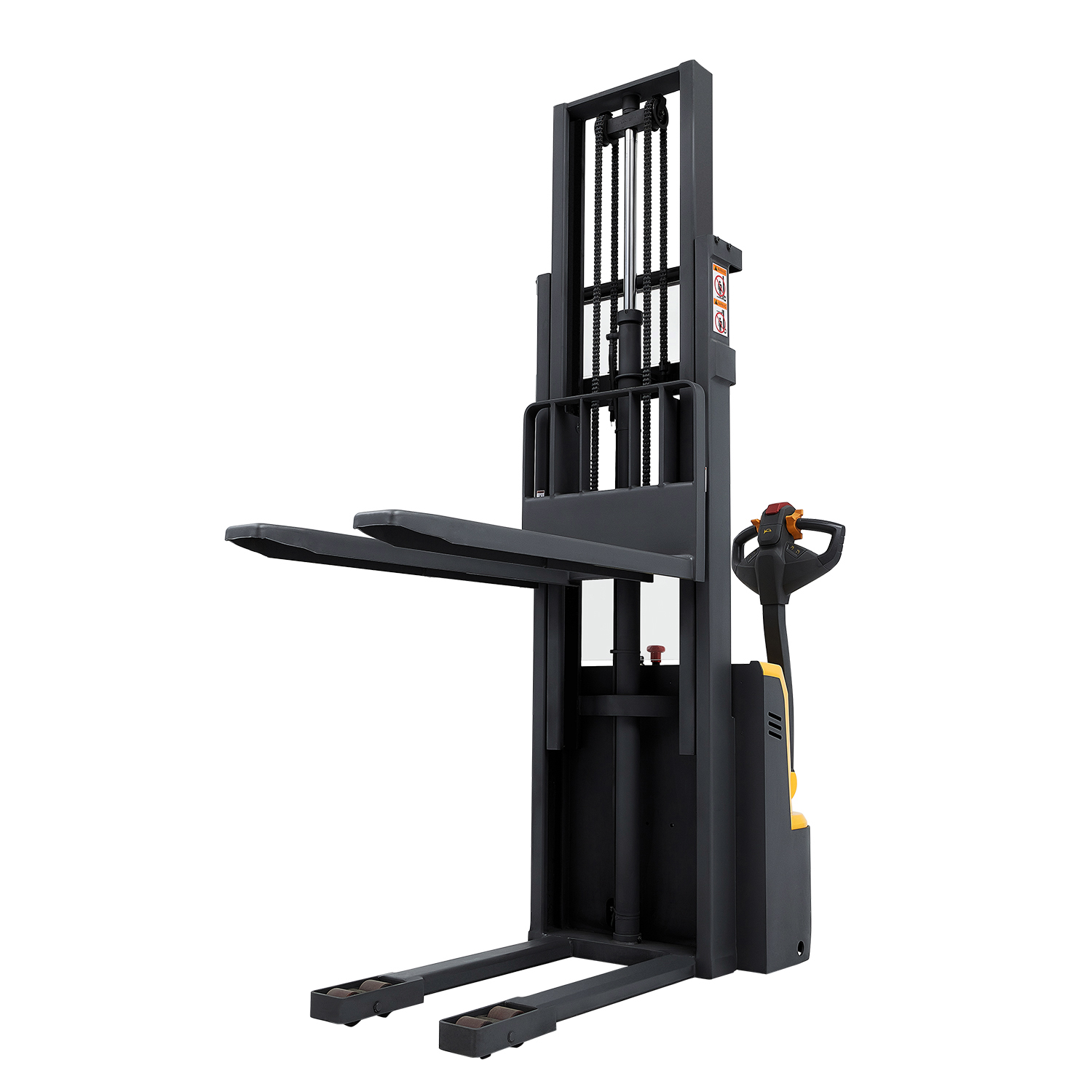

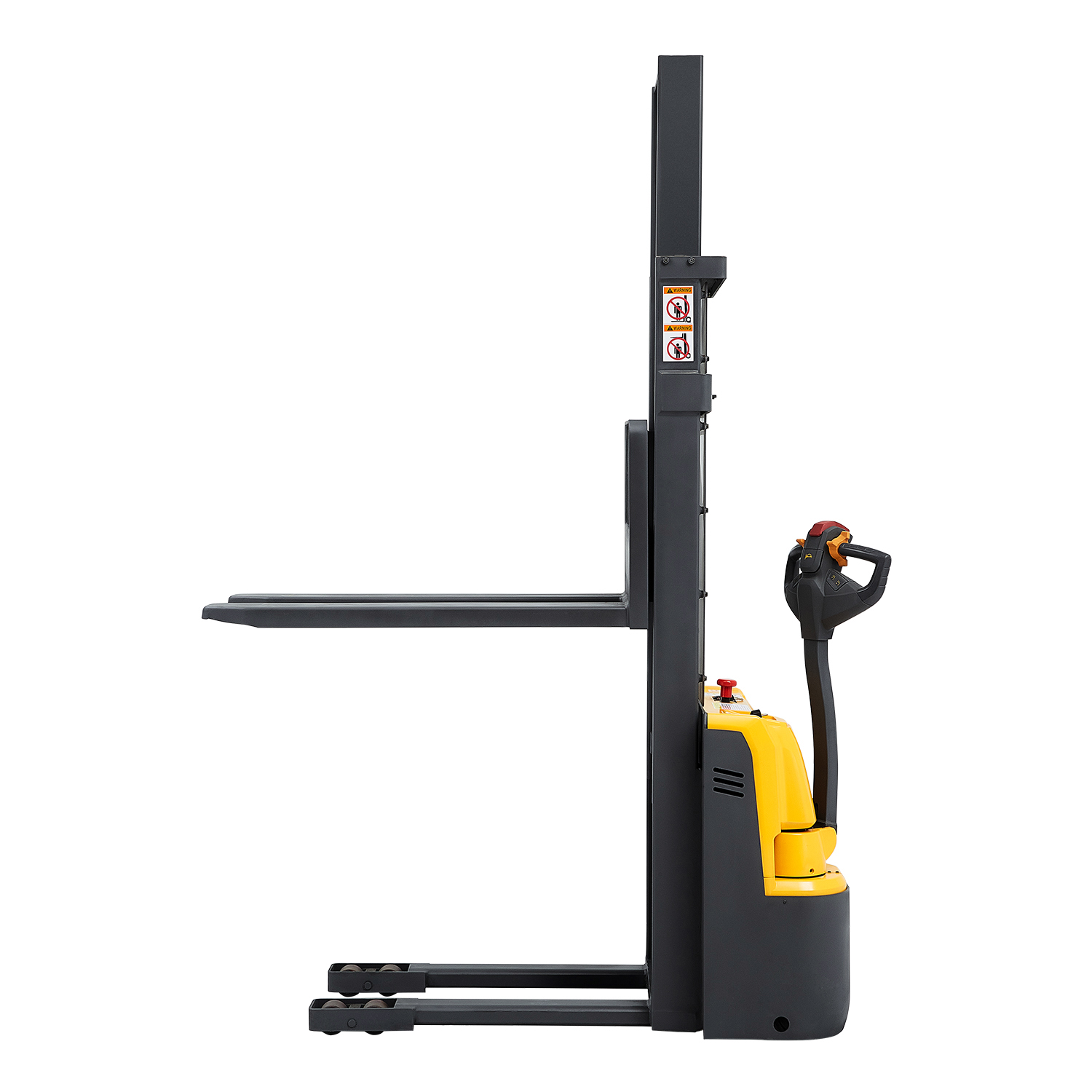

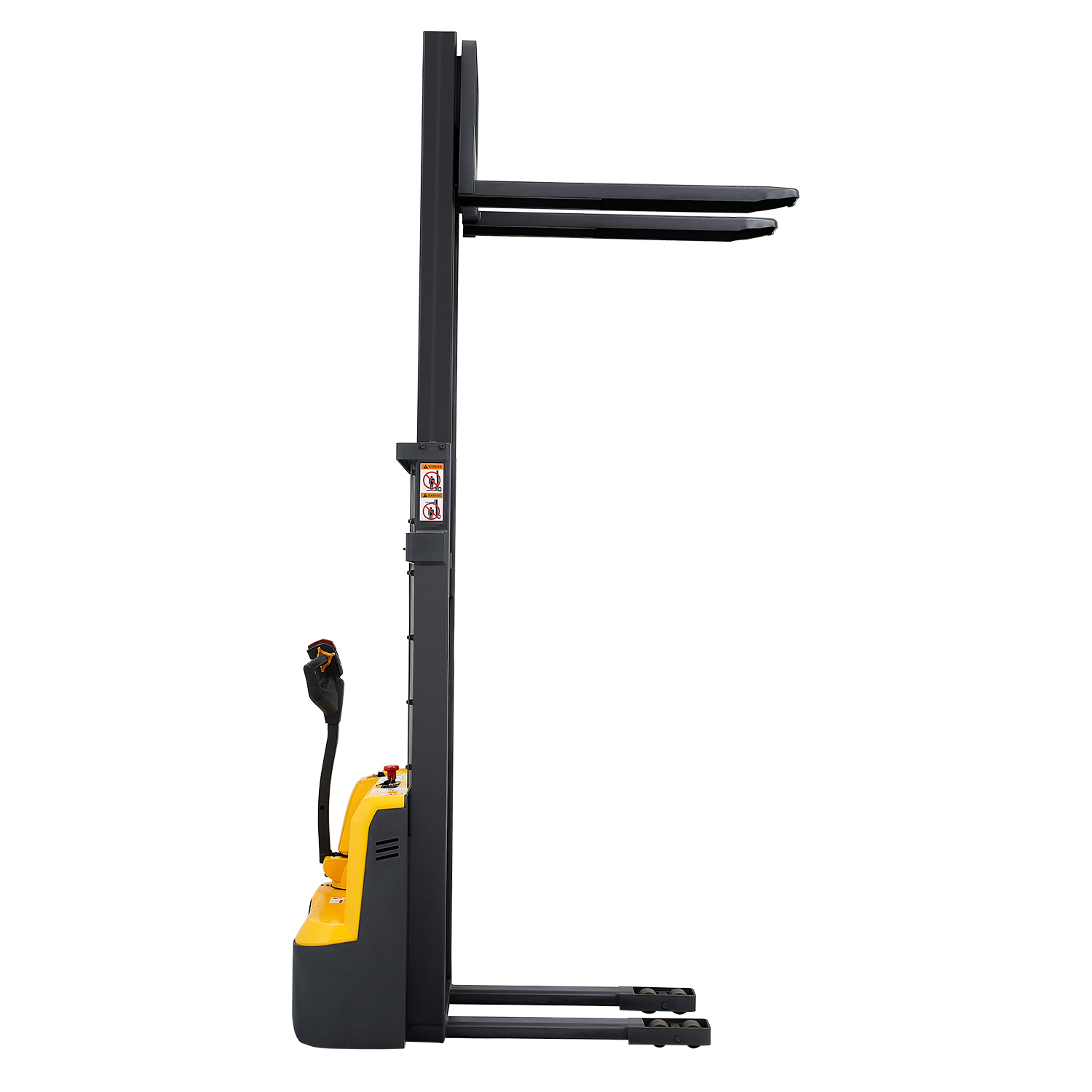

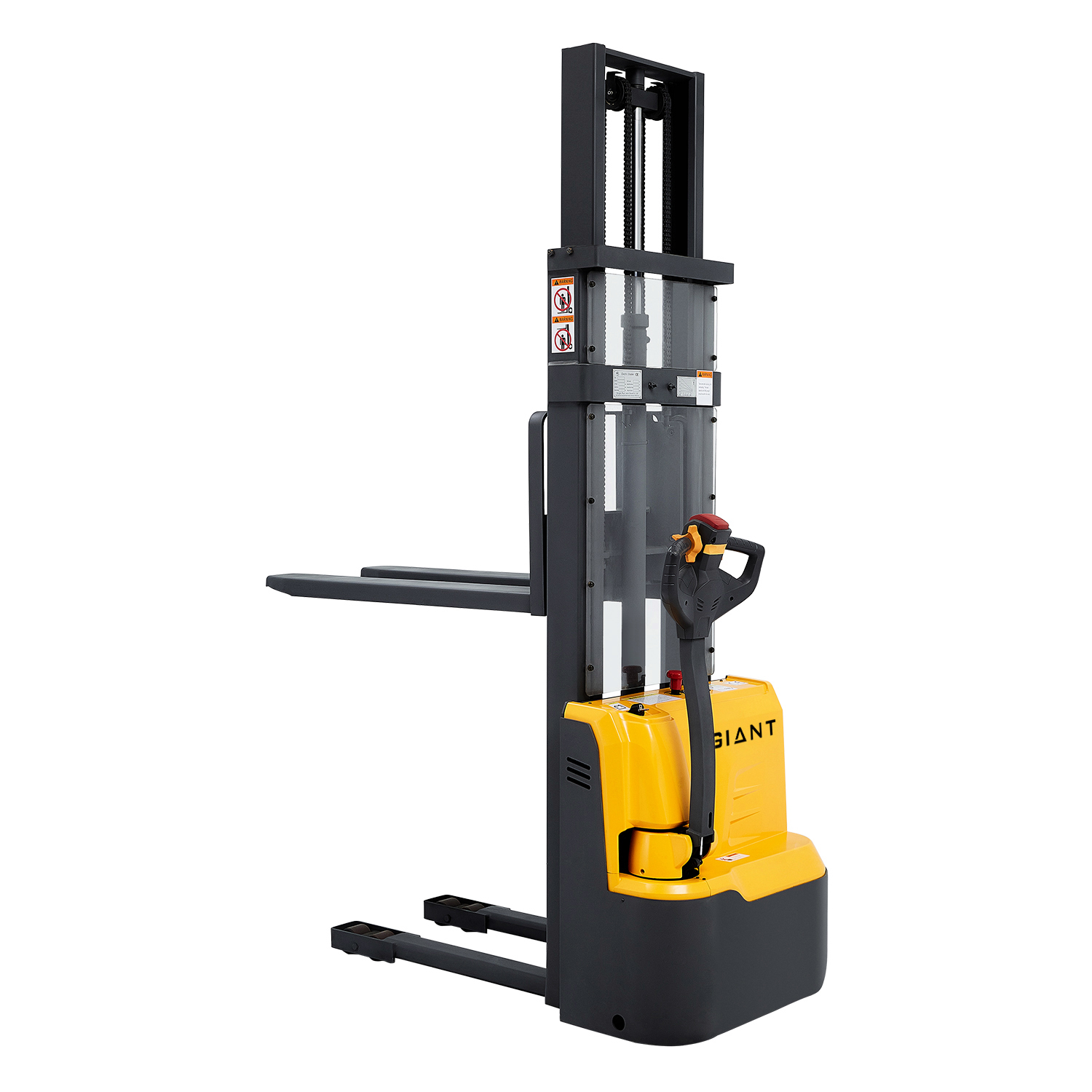

Plena Electric Stacker-CDD10R-E

Model

CDD10R-E

Electric Walkie Stacker

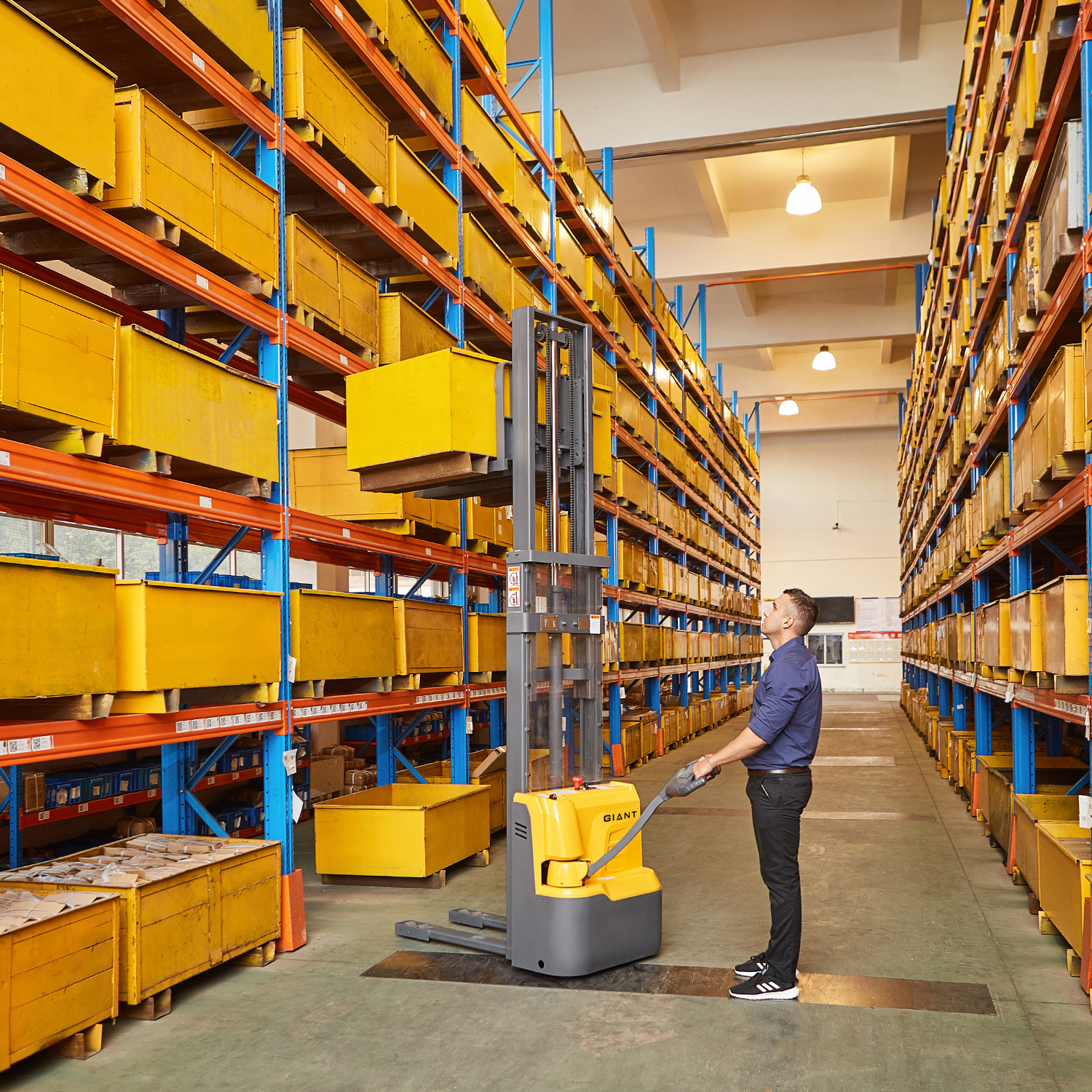

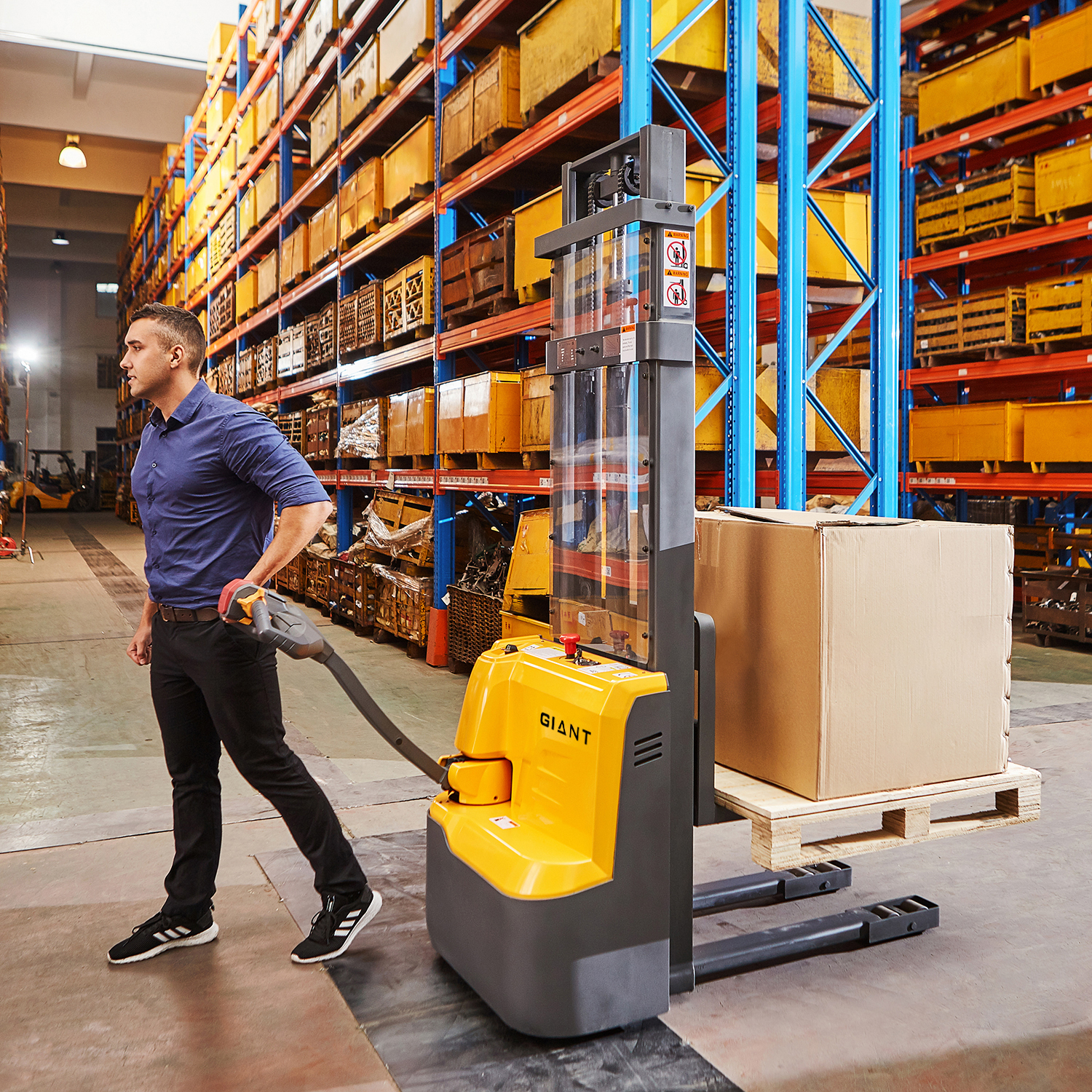

Super lucem Electric Walkie Stacker cum radiis parvis reflexionibus quae late in parvis horreis et super foro adhibetur. Apta pro iaces positis et brevi spatio vecturae.

Tergum operimentum genus designationis integratur, facile convenire et conservare.
Unitas coegi parvae radii versantis habent, motoria et fregit facillime reponere.
Utere GEL altilium liberum ad conservandum.
Foedus consilium et parvae dimensiones, praeclaram visibilitatem praebent.
Facilis aditus ad copiam aedificavit in patina.
Radius flexus et porticus latitudo valde parva est et quae similis est cum tassatori manuali.
Gravitatis consilium , punctum 4 design , emendare stabilitatem trucks.

Contactus nunc

Quaeritur quaestio

PREV：Self Elevatio Stacker-CDD05Z

NEXT：Semi Electric Stacker-CDD10B-III

Product Description

Model		CDD10R-E	CDD12R-E	CDD15R-E
Facultatem onus	Q(kg)	1000	1200	1500
Onus centrum spatium	c(mm)	600	600	600
Onus procul, centrum coegi axem ad furca	x (mm)	741	741	741
Altitudo deprimitur	h13(mm)	90	90	90
Strigare magnitudine, fronte		φ195×70	φ195×70	φ195×70
Tyrus mole tergo		φ80×70	φ80×70	φ80×70
Additional rotae (dimensiones)		φ150×60	φ150×60	φ150×60
Rotae numero ancipiti (x rotis agitatae)		1x 1/4	1x 1/4	1x 1/4
Altitudo, malum demissum	h1 (mm)	2090/1840/2090/2200/2340	2090/1840/2090/2200/2340	2085/1835/2085
Maximilianus. altitudo levare	h3 (mm)	1600/2500/3000/3300/3500	1600/2500/3000/3300/3500	1600/2500/3000
Altitudo, malum extensum	h4(mm)	2090/3060/3560/3860/4060	2090/3060/3560/3860/4060	2090/3060/3560
Altitudo agricolarum in coegi po- min./max.	h14(mm)	670/1300	670/1300	670/1300
Longitudo altiore	l1 (mm)	1748 (1668)	1748 (1668)	1748 (1668)
Longitudo ad faciem fuscinulas	l2(mm)	598	598	598
Altiore latitudine	b1 (mm)	800	800	800
Furca dimensiones	s/e/l(mm)	60/170/1150(1070)	60/170/1150(1070)	60/170/1150(1070)
Latitudo altiore tridentes	b5(mm)	570/695	570/695	570/695
Terram alvi, centrum wheelbase	m2(mm)	26	26	26
Aisle latitudinem transversis pro cursare 1000x1200	Ast (mm)	2218	2218	2212
Aisle latitudinem longitudinum 800x1200 cursare	Ast (mm)	2173	2173	2171
Conversus radii	Wa(mm)	1365	1365	1355
Iter celeritas, onusta/exonerata	Km/h	4.5/5	4.5/5	4.5/5
Celeritas vitae, onusta/exonerata	m/s**	0.11/0.14	0.09/0.14	0.08/0.11
Celeritas demissio, onustus/exoneratus	m/s	0.12/0.10	0.12/0.10	0.12/0.10
Pugna voltage, capacitas nominalis K20	V/Ah	24/105 (125)	24/105 (125)	24/125
altilium pondus	kg	52(70)	52(70)	70
Pugna dimensiones l / w / h *	mm	260(330)x168(171)x217	260(330)x168(171)x217	330x171x217
Officium pondus (cum altilium)	kg	460/525/545/560/565	615/640/660/675/680	705/730/750/765/770
