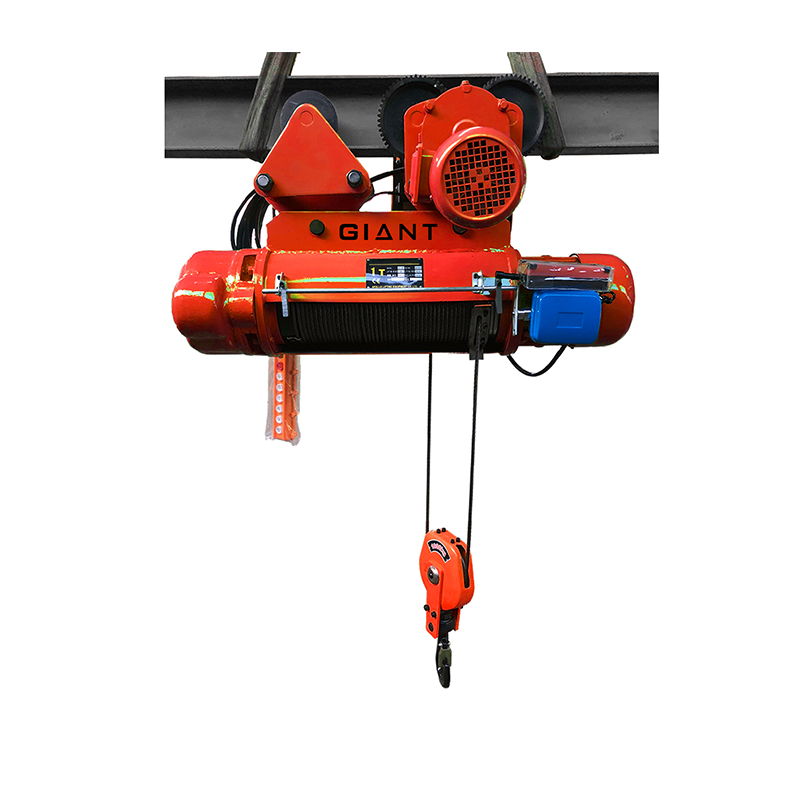

Multispeed Electric Wire Rope Hoist-CD1/MD1

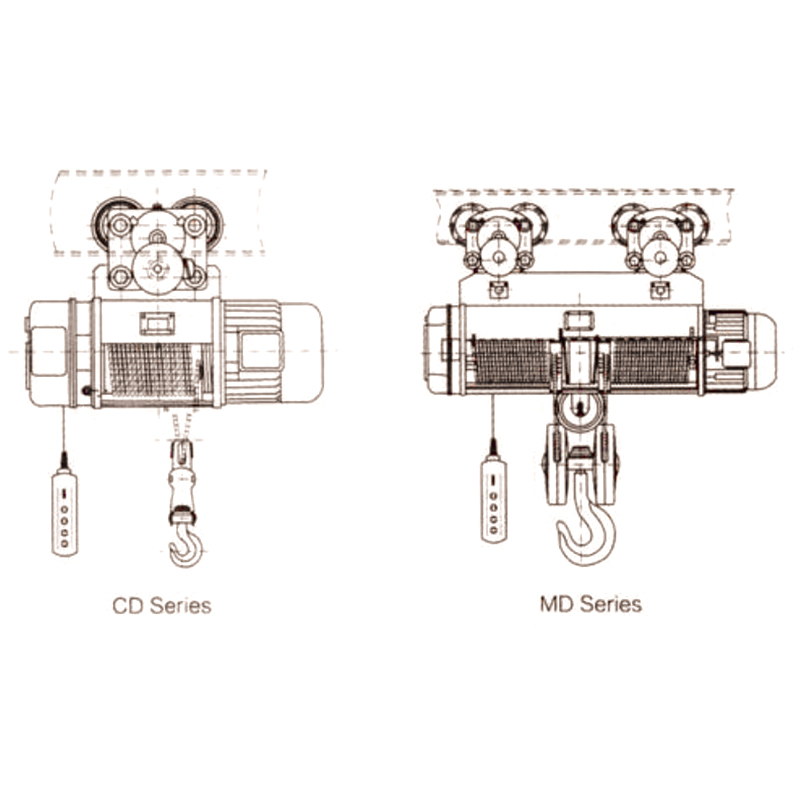

Exemplar CD1 Single Volo Levate cum Trolley

Exemplar MD1 Duplex Mobilitate Hoist cum Trolley

Foedus, leve, parvitas et facilis ad usum, et aliae notae, in singulis supra caput I-trabi institui potest, etiam institui potest in adaptatione electrica unius cinguli, trabis duplex, cantilever, sicut grues gantriae ad usum. Praeclarae occasiones in operatione, elige inter CD vel MD secundum diversam conditionem operationis, MD cum duplici velocitate levabis inter velocitatem velocitatem vel tarde flectere potest.
Funis filum: Princeps perficientur stabilis filum funem

Foedus: Foedus structura, praestantia observantia.
Electromagneticum fregit : Electram adopt incolumem ac fidentem fregit id est.
M 3 Ratum: Classis proletariis
Humilis strepitus; Humilis strepitus incipiens, assidue laborantis, sensibiliter operatio.
Capacitas onus: 1-20 tons
Elevatio Volo: 11m/min
Drive Speed: 21m/min
Grave pondus: 235-3450KG

Contactus nunc

Quaeritur quaestio

PREV：Mini Electric Wire Roe Hoist HGS

NEXT：Gravis Officium Electric Wire Rope Levate SH

Product Description

Model			CD1，MD1
Elevatio Capacity（t）			0.5				1						2						3						5						8						10						12.5					16					20
Altitudo elevatio (m)			6	9	12	18	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	6	9	12	18	24	6	9	12	18	24
Elevatio Volo(m/min)			8、0.8/8				8、0.8/8						8、0.8/8						8、0.8/8						8、0.8/8						5、0.5/5						7、0.7/7						5、0.5/5					3、0.35/3.5					3.5、0.35/3.5
Celeritate currens (m/min)			20				20						20						20						20						20						20						20					20					20
Funis filum	Nominal dia.		5.1				7.4						11						13						14						13						14						16					18					18
	Structure		6*19 NF				6*37 NF						6*37 NF						6*37 NF						6*37 NF						6*37 NF						6*37 NF						6*37 NF					6*29 NF					6*29 NF
	Intensio rate (mpa)		1770				1670						1670						1670						1770						1670						1770						1770					1870					1870
Rail-trabs			16-28b				16-28b						20a-45c						20a-63c						20a-63c						28a-63c						28a-63c						36a-63c					36a-63c					36a-63c
Min.radius anuli rail(m)			1.5				1.5		2		3	4	2		2.5		3	4	2		2.5		3	4	2.5		3		4	5	2.5	3	4	5.5	7	8.5	2.5	3.5	4	6	7.5	9						3.5	4	6	7.5	9	3.5	4	6	7.5	9
motricium elevatio	Type		ZD、21-4				ZD、22-4						ZD、31-4						ZD、14-4						ZD、41-4						ZD、41-4						ZD、51-6						ZD、51-6					ZD、51-6F					ZD、51-6
			ZDS、0.2/0.8				ZDS、0.2/1.5						ZDS、0.4/3.0						ZDS、0.5/4.5F						ZDS、0.8/7.5						ZDS、0.8/7.5						ZDS、1.5/13						ZDS、1.5/13					ZDS、1.2/11					ZDS、1.5/13
	Capacitas(kw)		0.8、0.2/0.8				1.5、0.2/1.5						3.0、0.4/3.0						4.5、0.5/4.5						7.5、0.8/7.5						7.5、0.8/7.5						13、1.5/13						13、1.5/13					11、1.2/11					13、1.5/13
	Celeritas (r/min)		1380				1380						1380						1380						1380						1380						930						930					930					930
	Phase numerus		3				3						3						3						3						3						3						3					3					3
	Voltage(V)		380				380						380						380						380						380						380						380					380					380
	Curren(A)		2.4、0.72/2.4				4.3、0.72/4.3						7.6、1.25/7.6						11、1.4/11						18、2.4/18						18、2.4/18						33、5.2/33						33、5.2/33					28、4.5/28					33、5.2/33
	Frequentia (Hz)		50				50						50						50						50						50						50						50					50					50
Currens motor	Type		ZDY、11-4				ZDY、11-4						ZDY、11-4						ZDY、11-4						ZDM、2-4F						ZDM、12-4F						ZDM、12-4F						ZDY、21-4					ZDY、21-4F					ZDY、21-4
	Capacitas(kw)		0.2				0.2						0.2						0.2						0.5						0.5*2						0.5*2						0.8*2					0.8*2					0.8*2
	Celeritas (r/min)		1380				1380						1380						1380						1380						1380						1380						1380					1380					1380
	Phase numerus		3				3						3						3						3						3						3						3					3					3
	Voltage(V)		380				380						380						380						380						380						380						380					380					380
	Curren(A)		0.72				0.72						1.4						0.72						1.4						1.4*2						1.4*2						2.4*2					2.4*2					2.4*2
	Frequentia (Hz)		50				50						50						50						50						50						50						50					50					50
Numerus commutatione (nhr)			120				120						120						120						120						120						120						120					120					120
Classification gradus			M3				M3						M3						M3						M3						M3						M3						M3					M3					M3
Basic dia. ± 2%	H	(MM)	~865		~955		~880			~970			~1035			~1140			~1165			~1270			~1305			~1465			~1350						~1450						~1590					~1990					~2000
	I		628	714	772	916	772	867	965	1161	1357	1553	818	918	1018	1218	1418	1618	963	1066	1164	1375	1581	1781	1082	1209	1298	1489	1699	1909	1342	1520	1700	2060	2418	2777	1513	1694	1875	2237	2594	2956	1658	1854	2050	2442	2834	1814	1995	2357	2719	3081	1814	1995	2357	2719	3081
			625	711	769	913	769	864	962	1158	1354	1550							965	1068	1166	1377	1583	1798	1079	1206	1295	1486	1696	1906	1392	1517	1697	2057	2415	1774	1904	2085	2666	2628	2985	3347	2049	2245	2441	2833	2147	2147	2328	2690	3052	3411	2147	2328	2690	3052	3411
	M		318	390	462	601	404	499	597	793	989	1185	412	512	612	812	1012	1212	457	561	658	869	1075	1281	488	615	704	895	1105	1315	748	926	106	1466	1824	2183	847	1028	1209	1571	1928	2290	992	1188	1384	1776	1148	1148	1329	1691	2053	2415	1148	1329	1691	2053	2415
	N		190				196						240						264						320						320						376						376					376					376
	Φ		14.5				19						23						25						31						31						38						37					38					38
	E		~795				~805						~960						~1080						~1210						~1093						~1200						~1293					~1635					~1690
