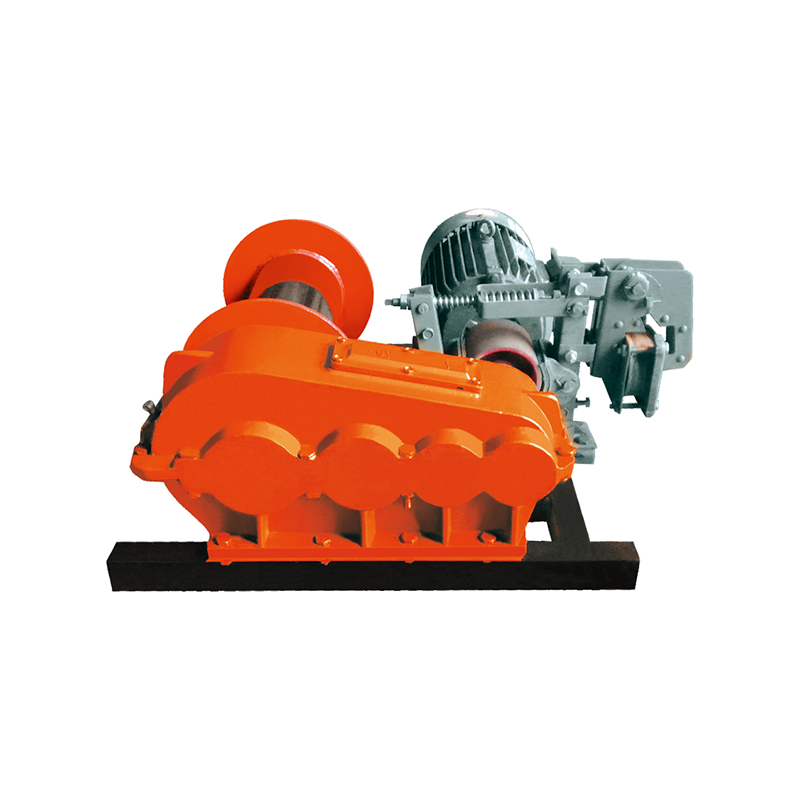

Aedificium Electric Winch JM-JK 0.5T-5T
  • Aedificium Electric Winch JM-JK 0.5T-5T

Aedificium Electric Winch JM-JK 0.5T-5T

Aedificium Electric Winch Series

  • Aedificium Electricae Winch Series maxime adhibentur in erigendis, disgregatis, movendis et instituendis punctis constructis in societatibus, fossionibus et officinis.
  • Praecipua Constructionis Features: cum valida potentia trahens, funem ferreum ordinate dispositum, cum salute et constantia.

Exemplar: JM (Tardi Type)

Capacitas: 0.5T-16T

Exemplar: JK (Fast type)

Capacitas:0.5T-10T

Contactus nunc Quaeritur quaestio PREV：Electric Winch-KCD-II/KNEXT：Standard Electric Winch KDJ-E2

Product Description

Model Cable aestimavit viverra (t) Funis velocitas (m/min) Diameter funis filum (φ mm) Funem filum longum (m) Cordis facultatem (m) Virtus (kw) (kw)
JK-0.5 0.5 22 7.7 60 200 2.2KW-4 100
JK-1 1 22 9.3 70 180 5.5KW-4 160
JK-1A 1 30 9.3 70 180 7.5KW-4 166
JK-2 2 20 12.5 80 160 11KW-4 300
JK-2A 2 30 12.5 80 160 15KW-4 325
JK-3 3 20 15.5 80 200 15KW-4 400
JK-3A 3 30 15.5 80 200 18.5KW-4 420
JK-5 5 20 19.5 / 250 YZR 22KW-6 1000
JK-5A 5 20 19.5 / 250 YZR 30KW-6 1200
JK-8 8 15 26 / 200 YZR 30KW-6 1700
JK-10 10 15 30 / 180 YZR 45KW-6 2200
JM-0.5 0.5 15 7.7 60 160 2.2KW-4 100
JM-1 1 15 9.3 70 200 5.5KW-4 160
JM-2 2 9 12.5 80 250 7 5KW-4 270
JM-3 3 9 15.5 80 250 11KW-4 375
JM-5 5 15 19.5 / 250 11KW-6 710
JM-5A 5 9 19.5 / 250 YZR 11KW-6 805
JM-5B 5 15 19.5 / 250 YZR 15KW-6 860
JM-8 8 9 26 / 200 YZR 15KW-6 1400
JM-8A 8 15 26 / 200 YZR 22KW-6 1550
JM-10 10 9 30 / 200 YZR 22KW-6 1800
JM-10A 10 15 30 / 200 YZR 30KW-6 1950
JM-12 10 9 32 / 200 YZR 22KW-6 3700
JM-12A 12 15 32 / 200 YZR 37KW-6 3900
JM-16 16 9 39 / 200 YZR 30KW-6 4300
JM-16A 16 15 39 / 200 YZR 45KW-6 4500
