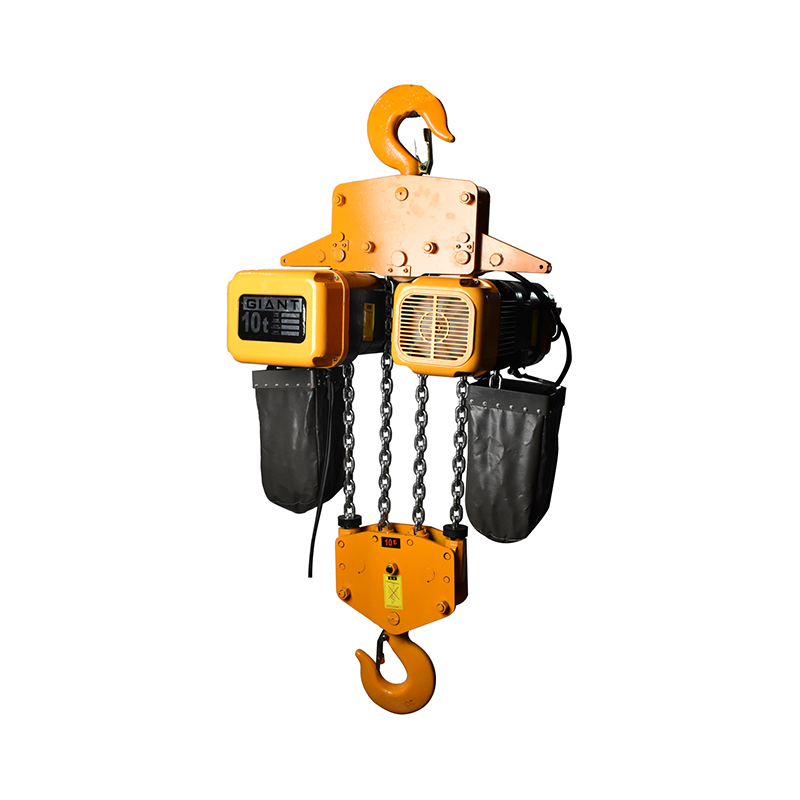

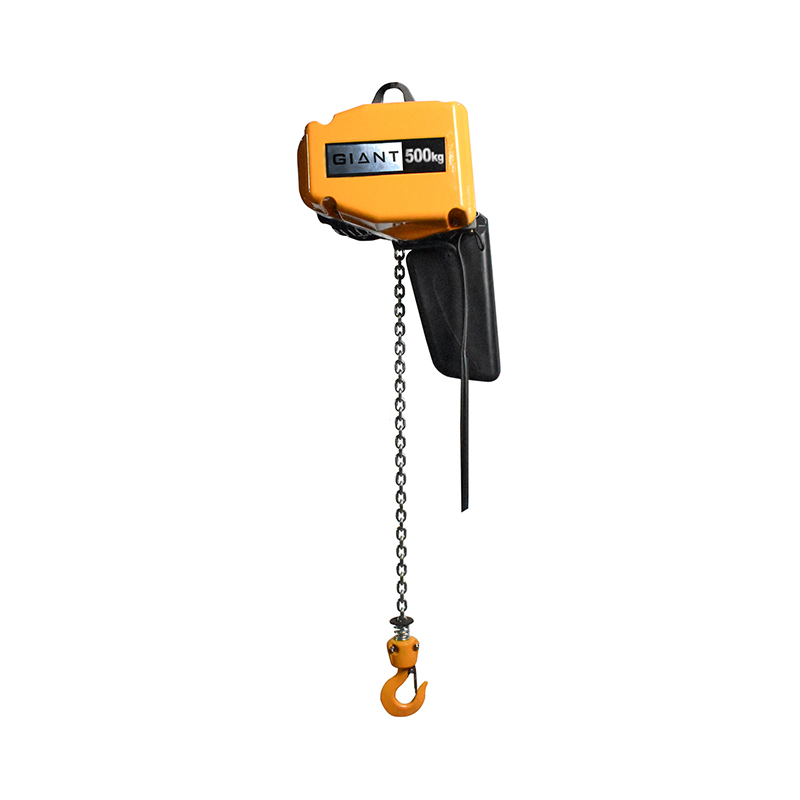

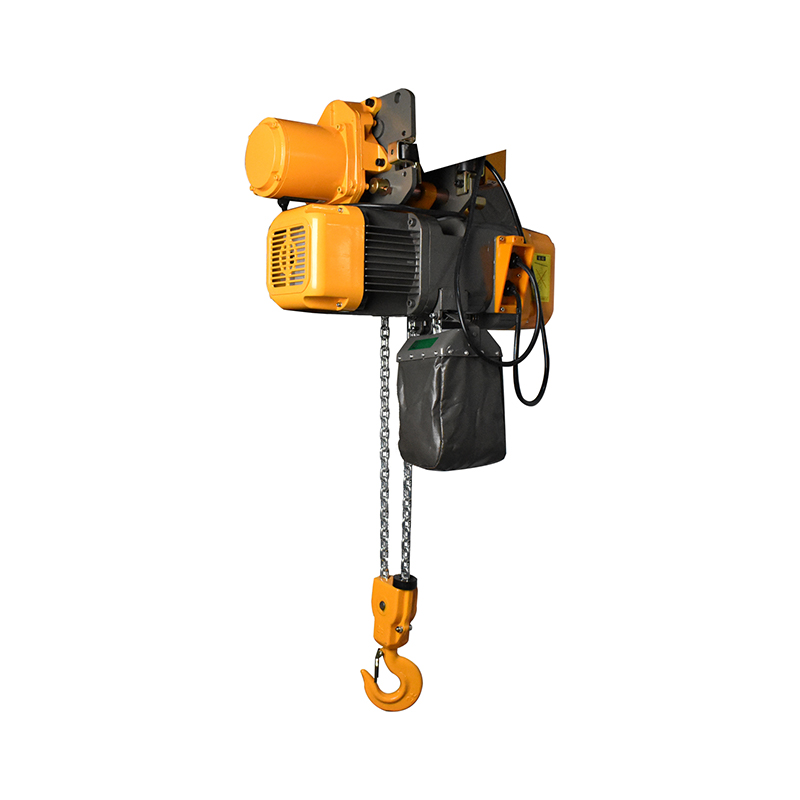

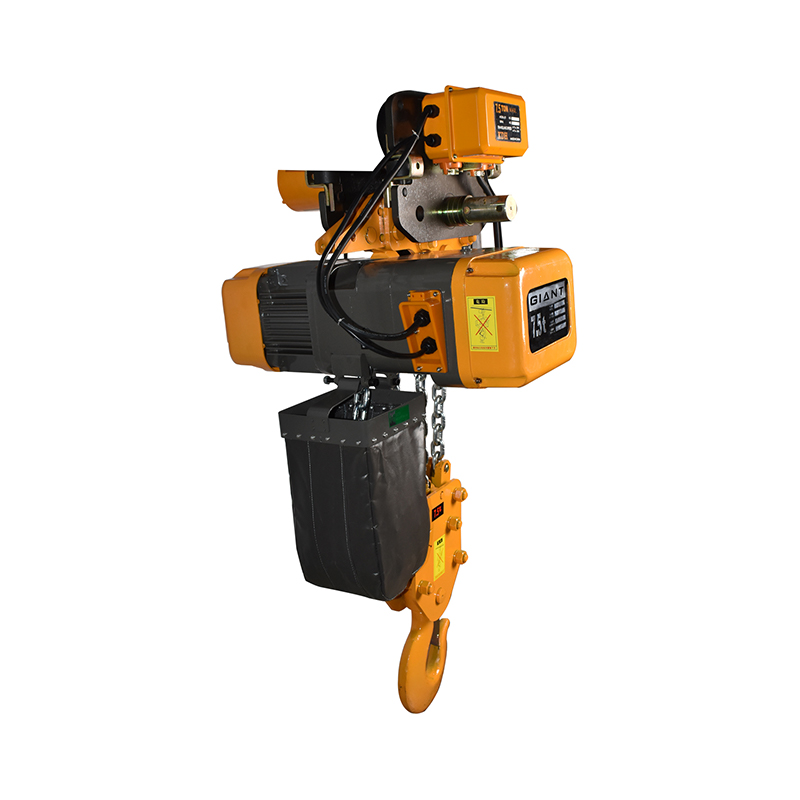

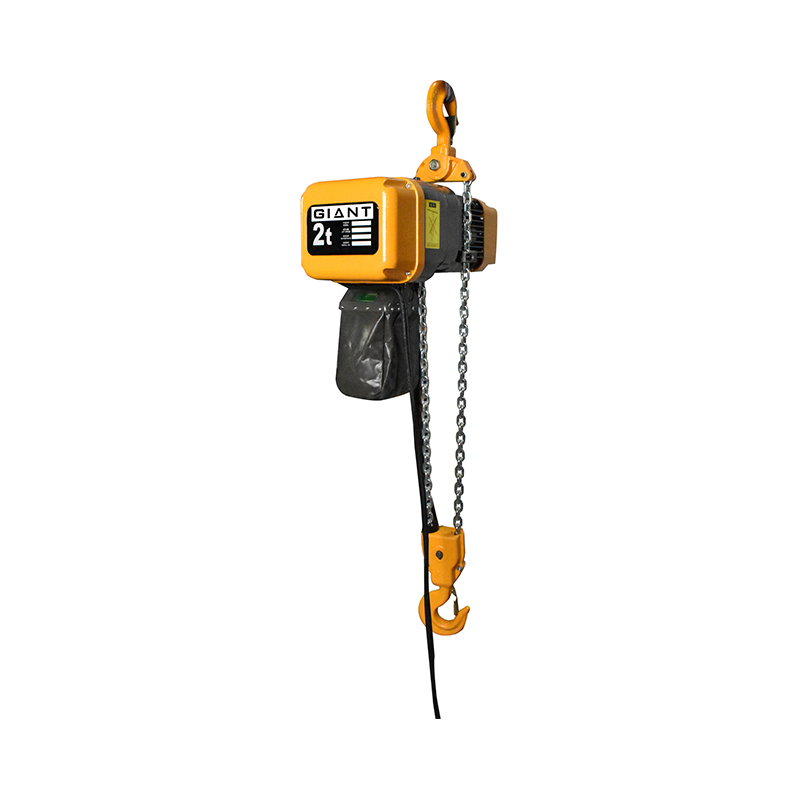

Antecessum Electric Chain Hoist GBD-II

Testa: Levis sed solidum aluminium mixturae putamen, ieiunium calor dissipatio, usui in terribili ambitu operis aptum.
Motor: Maximum qualitas motoria, strepitus humilis, M4 proletariis, usui aptum in gravi ambitu laboris instrumenta magna ad officinas levandas jobs
Hook: altitudinis viribus hamo ordinatur cum 360-gradu flexibili structurae rotato
G80 Admisce catenae; Instructus cum altissimo robore et duritie G80 Admisce catena, salva et durabilis.
Tempus inversum serie protegens fabrica: Est specialis electrica institutionis. quae control circuitus non operantur in casu de wiring error in potentia copia.
Controller: 24V low voltage Control handle with emergency stop button (Option: Wireless controller is also available with extra charge)
finis switch: Modus machinae transiens inauguratus est ubi pondus interdum elatum est ut motorem automatice prohiberet ut catenas ex nimia salute prohiberet.
Parte magnetica fabrica braking; Haec machina intelleget instans fregit in casu potentiae dump.
Catena sacculi: Lux, formosa et durabilis
Option: GBD02,2.5,03,05,7.5,10 duplex celeritas elevatio est available.

Contactus nunc

Quaeritur quaestio

PREV：Humilis Clearance Type Electric Chain Levabit GBD-II-L

NEXT：Classic Electric Chain Hoist GBD

Product Description

Technical Parameters
Type	capacitas (Ton)	Altitud*o elevatio m）	Elevatio Volo (m/min)	motricium elevatio					Operans motricium						Net Pondus kg**）	Pondus additum est extra 1m catenae kg）
Type	capacitas (Ton)	Altitud*o elevatio m）	Elevatio Volo (m/min)	Potestas Kw）	gyratio Celeritas (r/min)	Phases	Voltage V）	Frequentia （HZ/S)	Potestas Kw）	gyratio Celeritas (r/min)	Celeritas operating (m/min)	Phases	Voltage V）	Frequentia （HZ/S)	Net Pondus kg**）	Pondus additum est extra 1m catenae kg）
GBD-II01-01 I	1	4	7.1	1.5	1440	3	380	50	/	/	/	/	/	/	47	1.3
GBD-II02-01 I	2	4	7.0	3.0	1440	3	380	50	/	/	/	/	/	/	72	2.3
GBD-II02-02 I	2	4	3.5	1.5	1440	3	380	50	/	/	/	/	/	/	54	2.6
GBD-II03-01 I	3	4	7.0	3.6	1440	3	380	50	/	/	/	/	/	/	104	2.8
GBD-II03-02 I	3	4	3.5	3.0	1440	3	380	50	/	/	/	/	/	/	107	4.7
GBD-II05-02 I	5	4	3.5	3.6	1440	3	380	50	/	/	/	/	/	/	132	5.6

Type

capacitas
(Ton)

Altitudo elevatio
(m)

Elevatio Volo
(m/min)

motricium elevatio

Operans motricium

Ego Beam
(mm)

Potestas
(Kw)

gyratio
Celeritas
(r/min)

Phases

Voltage
(V)

Frequentia
(HZ/S)

Potestas
(Kw)

gyratio
Celeritas
(r/min)

Celeritas operating
(m/min)

Phases

Voltage
(V)

Frequentia
(HZ/S)

GBD-II075-03 Y

7.5

2.3

3.6

1440

380

0.75

1440

11/21

380

100-178

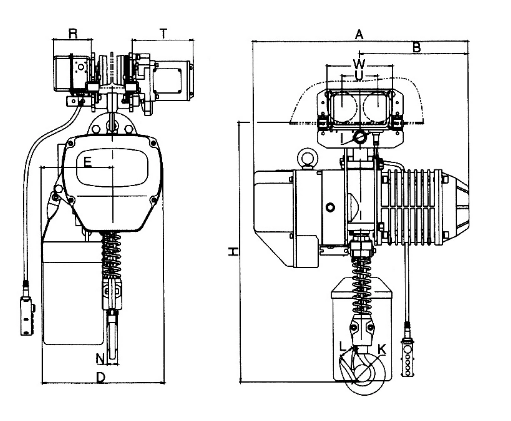

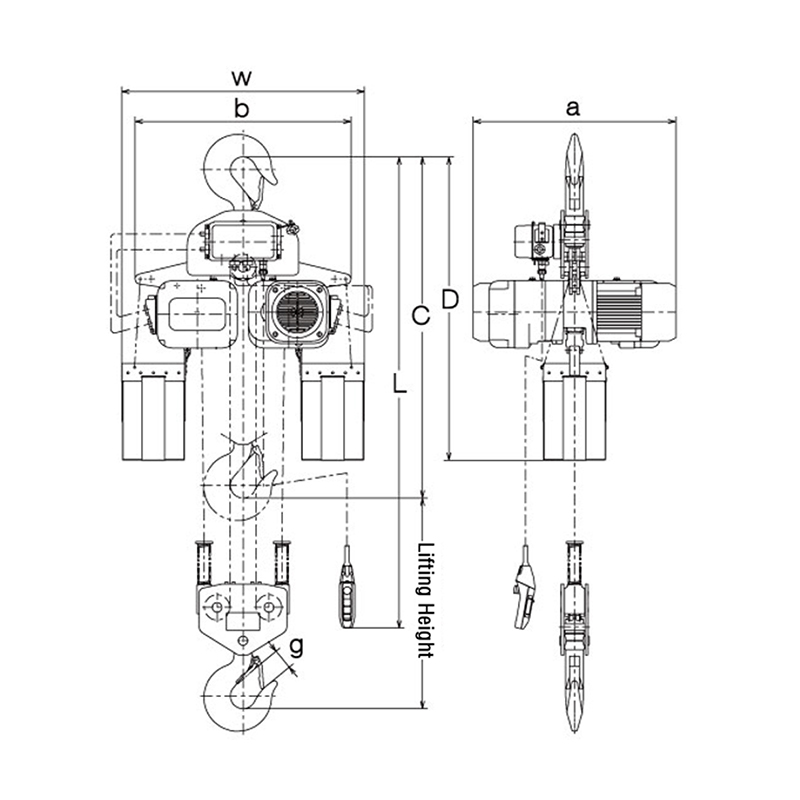

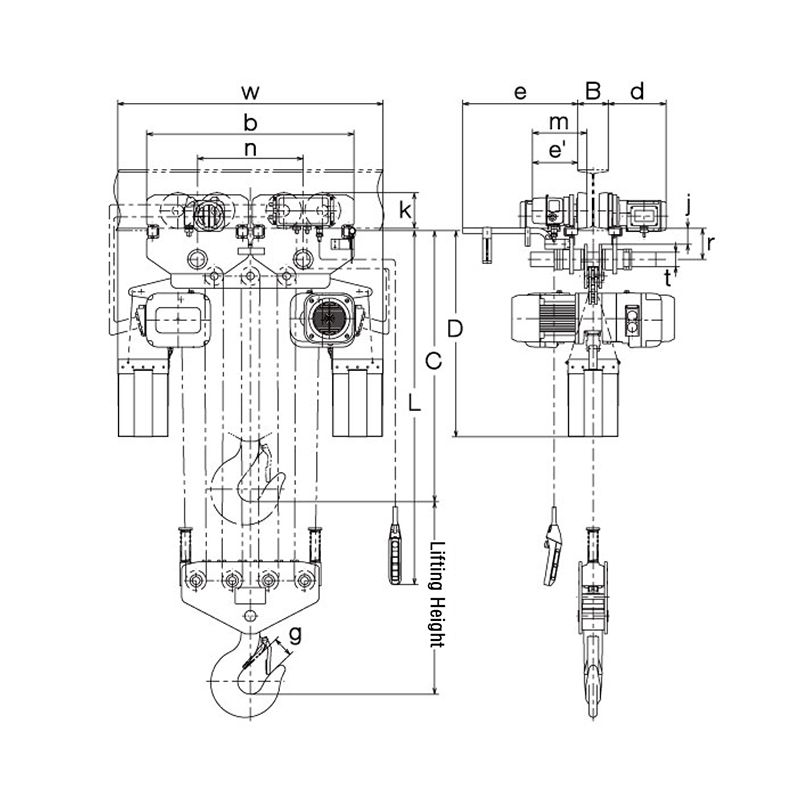

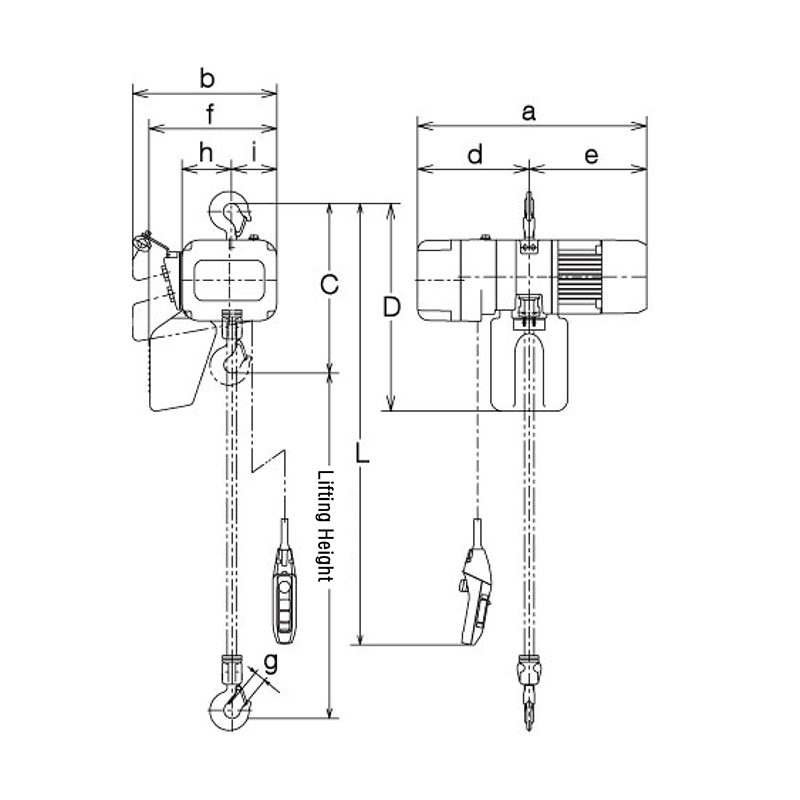

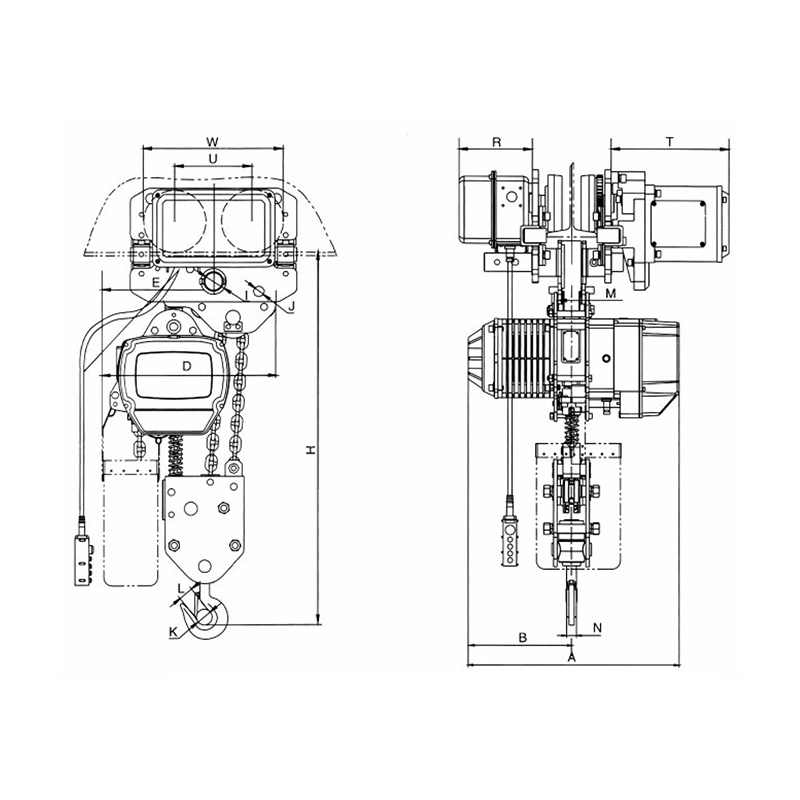

Magnitudo Specification
Type	capacitas Ton）	Unit mm）							Net Weight (kg)		Pondus additum est extra 1m catenae kg）
Type	capacitas Ton）	C	D	b	e	g	j	Chain	Vide	Trolley	Pondus additum est extra 1m catenae kg）
GBD-II10-04 Y	10	1180	1210	500	531	80	77	11.2	303	100	10.4
GBD-II15-06 Y	15/16	1310	1230	1020	531	86	82	11.2	404	77*2	16.0
GBD-II20-08 Y	20	1345	1230	1020	531	102	77	11.2	476	77*2	21.2
GBD-II25-10 Y	25	1450	1300	1300	531	150	/	11.2	580	200	26.5
GBD-II30-12 Y	30	1600	1400	1400	531	195	/	11.2	680	/	31.8
