360 De Gradibus Catenae Levate HSZ-360

Hoc genus in 360 gradus adhiberi potest

Hoc genus cum axungia instructum et vim trahendi manu minuere potest. Patentes exemplar cum consilio res novas
Specialis ad hamum designatus facile retroire potest et cum trahit directe institui potest
Premium gradus stannum onus catenae et zinci manu inaurata sicut vexillum
Rorate ficti et perite hami caloris laborantes propter magnam vim et diuturnitatem
Facultas vagatur ab 0.5t ad 20t, officium grave 30t,50t est available
Aculei valentibus pessulis aptantur et rotantur 360°
Onerare limiter portare potest "

Contactus nunc

Quaeritur quaestio

PREV：Standard Chain Hoist HSZ

NEXT：Mini Chain Hoist HSZ-M

Product Description

Model			HSZ-0.25t	HSZ-0.5t	HSZ-1.0t	HSZ-1.5t	HSZ-2.0t	HSZ-3.0t	HSZ-5.0t	HSZ-10t	HSZ-15t	HSZ-20t	HSZ-30t	HSZ-50t
capacitas		tons	0.25	0.5	1	1.5	2	3	5	10	15	20	30	50
Vexillum vitae		m	2.5	2.5	2.5	2.5	2.5	3	3	3	3	3	3	3
Currentem test onus		KN	3.75	7.5	15	22.5	30	45	75	150	225	300	450	750
Requiritur conatus ad onus levare rated		N	220	250	285	380	340	370	370	380	380	390*2	390*2	390*2
Diameter manus catenae		mm	3*15	5*23.6
Fila oneris catenae			1	1	1	1	1	2	2	4	6	8	12	22
Diameter onus catenae		mm	4*12	6*18	6*18	8*24	8*24	8*24	10*30	10*30	10*30	10*30	10*30	10*30

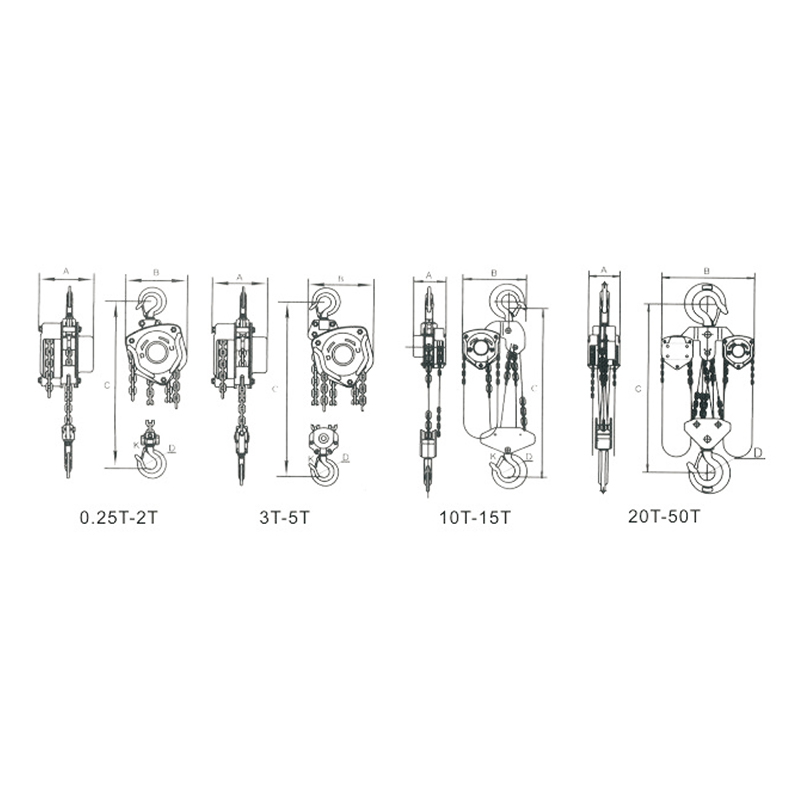

Dimensiones（mm	A		102	132	132	173	175	205	189	189	200	200	350	430
	B		106	148	148	196	210	255	280	463	718	840	700	930
	C		260	345	376	442	470	548	688	765	900	950	1020	1920
	D		21	35	35	45	50	55	65	75	95	106	110	130
	K		20	23	23	33	35	39	45	54	71	82	85	130
Net pondus		kg	3.8	10	11.8	16.5	18.5	24	41.1	78	135	192	300	1120
Stipare mensurae		cm	201512	371718	322021	372024	372024	372524	402628	54* 35* 47	884065	884065	954570	13001000800
Extra pondus per meter of extra vitae		kg	0.37	1.5	1.8	2.4	2.4	3.7	5.4	9.8	14.7	19.6	28.5	50.5
