Recta pendens circa Type Leva Ring-XCIV Series

Erige Ring-094 Series
(Cum spissamentum)

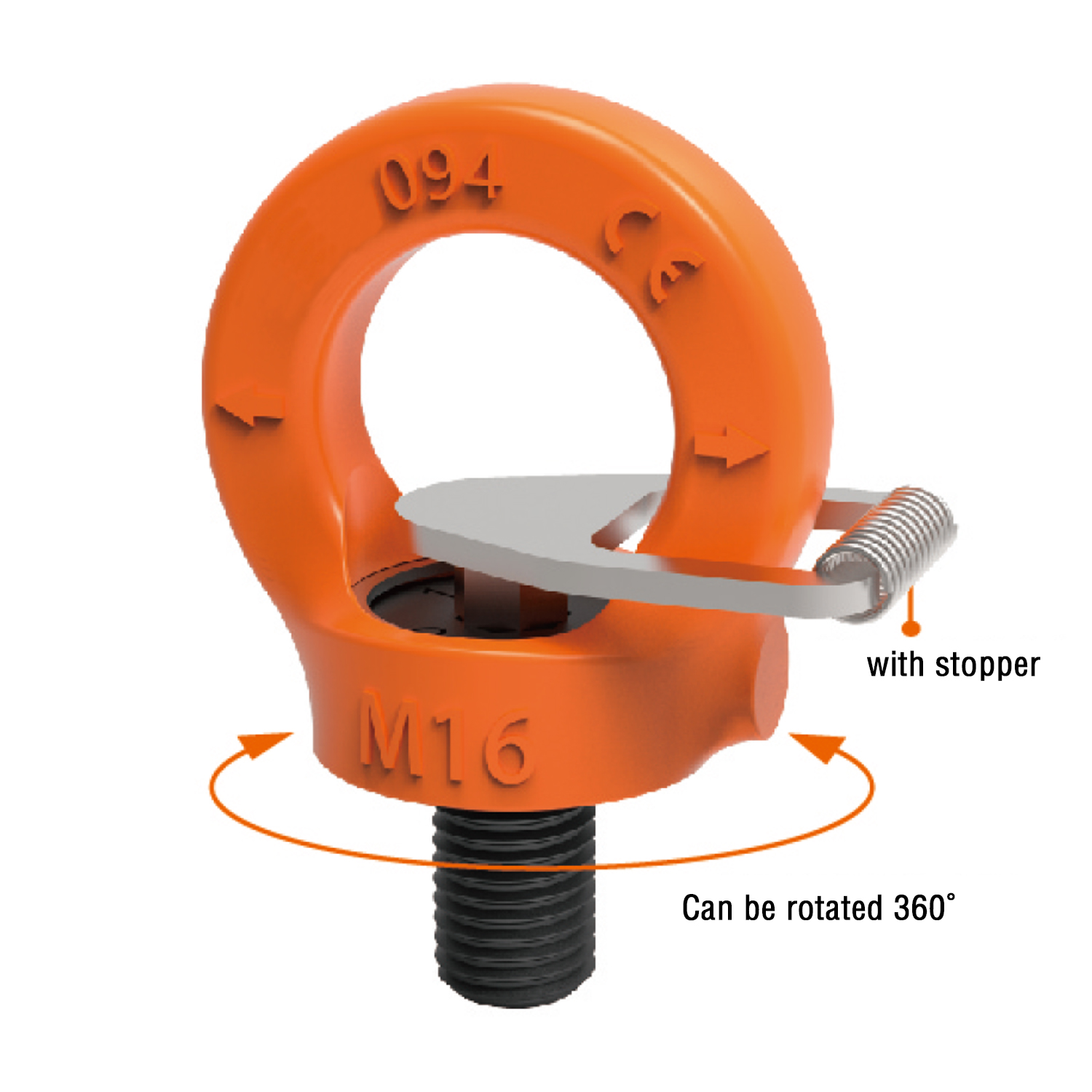

360° rotationis

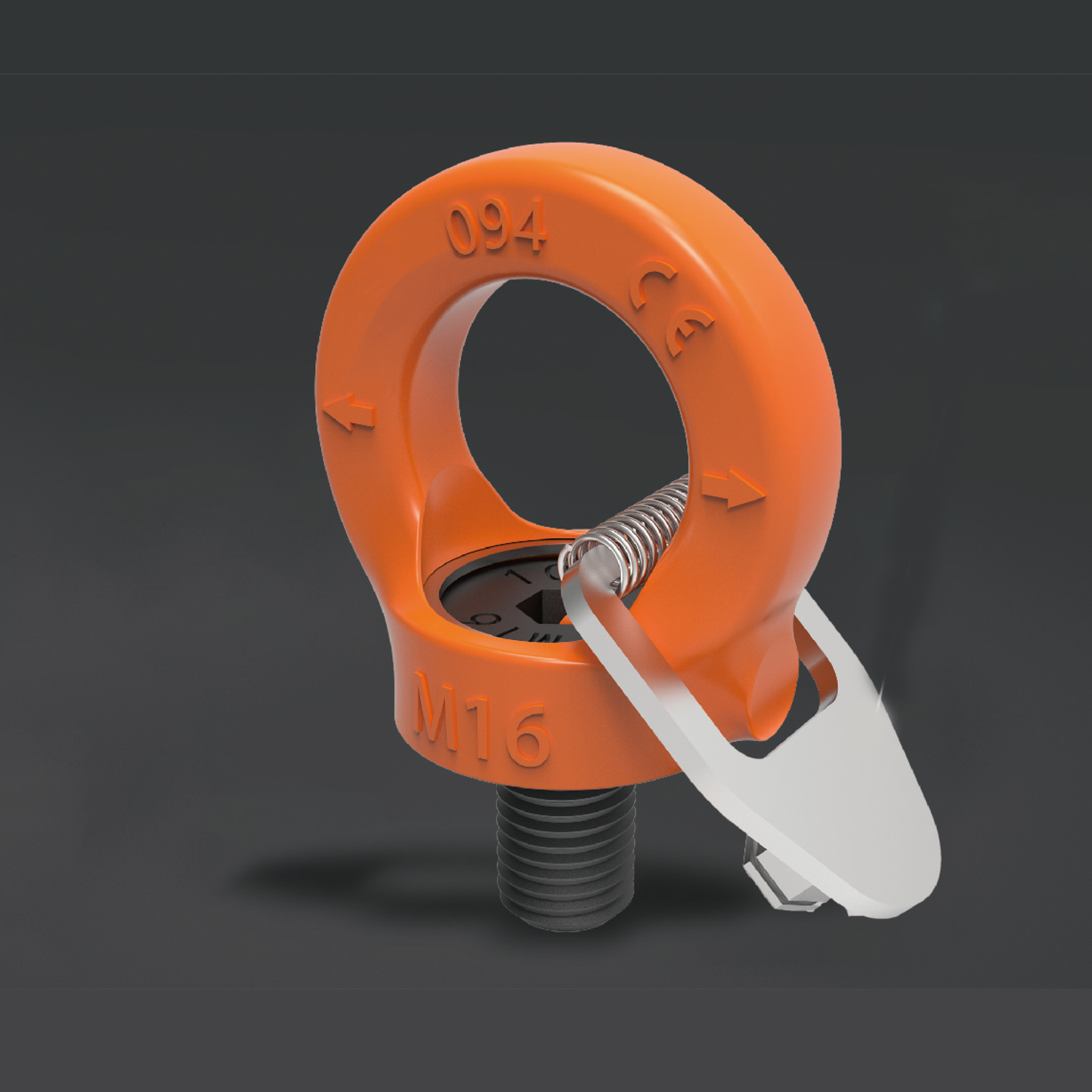

YD094 clavis densis instructa, et etiam cochleæ statura instructa. Post densis, commodum est instituere, et anulus elevatus post laxationem gyrari potest.

-4 temporibus salus factor

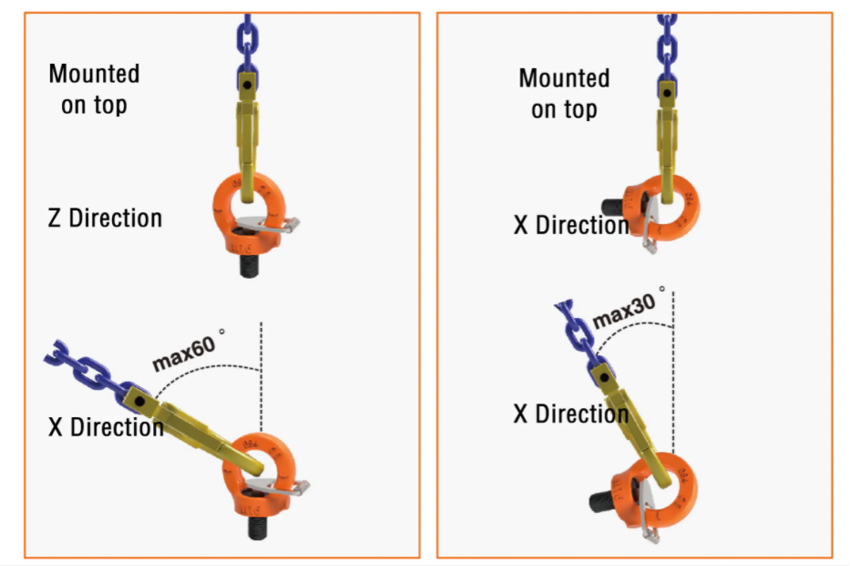

Onera, quae elevari possunt, in variis vis directionum diversa sunt, sed factor salutis in 4 tempore praestatur. Elevatio in directum verticalem, onus laborantis magnum est.

Complete specifications

Specificationes stamina completa et late aestimata onus range (M8 - M48, 0.3T - 32T); Magnitudo sequela nativus secundum exigentias mos (prolongatio, abbreviatio, dentes grossi, dentes denique, systema metrica, systema Americanum).

Electrostatic spargit mixturae steel

Fulmen e ferro fit offensionis 42CrMo subtilitas cudebat.

Robora distrahentes ante tractationem caloris 1080mpa est.

Mechanicae proprietates emendantur post extinctionem et temperantiam.

Electrostatica spargit postquam denigrat superficiem anuli elevati ad facultatem anti-corrosionis superficiei emendandam.

100% GO - NO ad inspectionem ADFIXUS gauges

C% transeunt inspectionem 6G GO - NO GO FIXUM gauges et applicari potest ad subtilitatem lina perforata.

Contactus nunc

Quaeritur quaestio

PREV：Swivel Rotate Type Leva Ring-S Series

NEXT：Parte pendens adductius Type Leva Ring-LXXXI Series

Product Description

Numerus membrorum propagator		1	2	1	2	2		2	2	3-4	3-4
angulus elevatus		0°	0°	90°	90°	0-45°	45-60°	Asymmetria	0-45°	45-60°	Asymmetria
ITEM NO.	Thread /M	WLL/T
094-M8	8	1	2	0.3	0.6	0.42	0.3	0.3	0.63	0.45	0.3
094-M10	10	1	2	0.4	0.8	0.56	0.4	0.4	0.8	0.6	0.4
094-M12	12	2	4	0.75	1.5	1	0.75	0.75	1.5	1.1	0.75
094-M14	14	2	4	0.75	1.5	1	0.75	0.75	1.5	1.1	0.75
094-M16	16	4	8	1.5.	3	2.1	1.5	1.5	3.1	22	1.5
094-M18	18	4	8	1.5	3	2.1	1.5	1.5	3.1	2.2	1.5
094-M20	20	6	12	2.3	4.6	3.2	2.3	2.3	4.8	3.4	2.3
094-M22	22	6	12	2.3	4.6	3.2	2.3	2.3	4.8	3.4	2.3
094-M24	24	8	16	3.2	6.4	4.5	3.2	3.2	6.7	4.8	3.2.
094-M27	27	8	16	3.2	6.4	4.5	3.2	3.2	6.7	4.8	3.2
094-M30	30	12	24	4.5	9	6.3	4.5	4.5	9.4	6.7	4.5
094-M33	33	12	24	4.5	9	6.3	4.5	4.5	9.4	6.7	4.5
094-M36	36	16	32	7	14	9.8	7	7	14.7	10.5	7
094-M42	42	24	48	9	18	12.6	9	9	18.9	13.5	9
094-M48	48	32	64	12	24	16.8	12	12	25	18	12

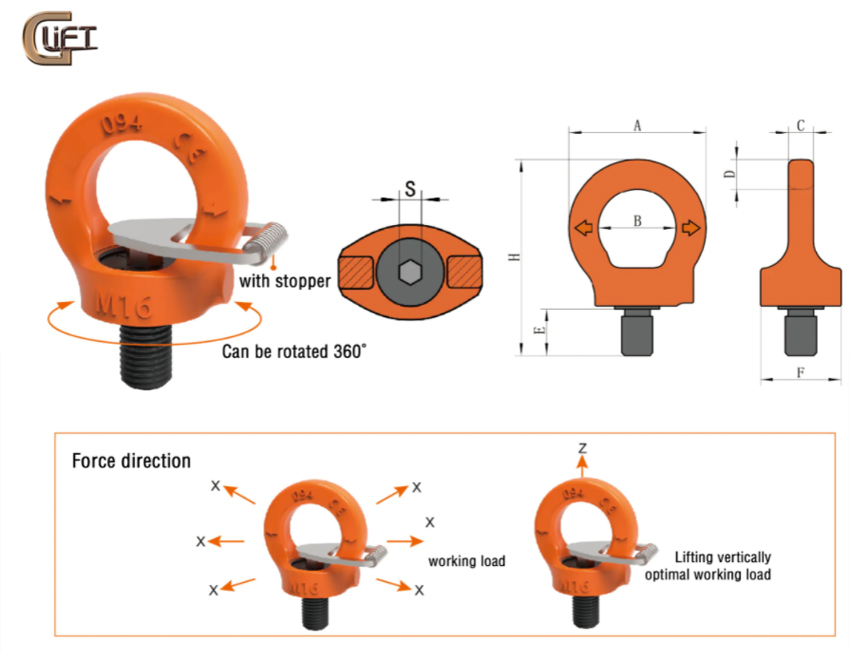

ITEM NO.	WLL/T	Thread /M	Technical Parameter /mm								N.W
ITEM NO.	WLL/T	Thread /M	E	A	B	C	D	E	F	H	Kg
094-M8	0.3	M8x1.25-6g	12	44	25	8	9.5	26	61.5	6	0.15
094-M10	0.4	M10x1.5-6g	15	44	25	8	9.5	26	64.5	6	0.15
094-M12	0.75	M12x1.75-6g	18	52	30	10	11	32	76	8	0.2
094-M14	0.75	M14x2.0-6g	18	52	30	10	11	32	76	8	0.2
094-M16	1.5	M16x2.0-6g	24	61	35	14	13	39	91	10	0.35
094-M18	1.5	M18x2.5-6g	24	61	35	14	13	39	91	10	0.35
094-M20	23	M20x2.5-6g	30	70	40	16	15	47	108	12	0.6
094-M22	23	M22x2.5-6g	30	70	40	16	15	47	108	12	0.6
094-M24	3.2	M24x3.0-6g	36	84	48	19	18	55	127	14	1
094-M27	3.2	M27x3.0-6g	36	84	48	19	18	55	127	14	1
094-M30	4.5	M30x3.5-6g	45	105	60	24	22.5	67	159	17	2
094-M33	4.5	M33x3.5-6g	45	105	60	24	22.5	67	159	17	2
094-M36	7	M36x4.0-6g	54	126	72	29	27	85	195	22	3
094-M42	9	M42x4.5-6g	63	147	82	34	32.5	98	225.5	22	5
094-M48	12	M48x5.0-6g	72	168	96	38	36	114	259	27	7.5
